13S Ternary Lithium Battery Management System BMS with 5A-50A Current Range and 25A Continuous Current for Power Tools and Energy Storage

  • 13S Ternary Lithium Battery Management System BMS with 5A-50A Current Range and 25A Continuous Current for Power Tools and Energy Storage
  • 13S Ternary Lithium Battery Management System BMS with 5A-50A Current Range and 25A Continuous Current for Power Tools and Energy Storage
  • 13S Ternary Lithium Battery Management System BMS with 5A-50A Current Range and 25A Continuous Current for Power Tools and Energy Storage
  • 13S Ternary Lithium Battery Management System BMS with 5A-50A Current Range and 25A Continuous Current for Power Tools and Energy Storage
Tempat asal Shenzhen, Tiongkok
Nama merek KLS
Sertifikasi CE,UL,ROHS,ERP.....
Nomor model B510
Kuantitas min Order 1
Harga $4.2-6.5$
Kemasan rincian Kemasan antistatik bubble wrap
Waktu pengiriman 7-15 hari kerja
Syarat-syarat pembayaran L/C, D/A, D/P, Western Union, T/T, Moneygram
Menyediakan kemampuan 1000000pcb/bulan

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Bahan FR4 /aluminium/keramik CEM1 Antarmuka Komunikasi BISA, UART, RS485
Bahan Tempat Guangdong, Cina Fungsi Sistem Manajemen Baterai
Base Meterial PCB Ketebalan papan 1.6mm
Rentang Tegangan 12V hingga 96V Penyelesaian Permukaan Hasl lead gratis
Pelabuhan Shenzhen Sertifikasi CE, UL, ROHS
Tipe tampilan Indikator LED Barang Papan Sirkuit Kustom
Aplikasi Paket Baterai NMC/Lifepo4 Voltase 24V/36V/48V/60V/72V
Ukuran Papan Hasl lead gratis
Menyoroti

13S Ternary Lithium BMS

,

5A-50A Current Range Battery Management System

,

25A Continuous Current Lithium Battery Protection Board
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk
13S 5A-50A BMS for LiFePO4/Lithium Ion/Sodium Ion/NMC Battery Pack
High-performance battery management system designed for power tools, featuring temperature detection, battery equalization, and low-voltage protection.
13S Ternary Lithium Battery Protection Board
Same-port charge/discharge design with maximum 50A continuous current
High-precision protection IC for reliable operation
Compact 75mm × 50mm × 1.6mm PCB size
RoHS compliant and environmentally friendly
Product Specifications
Model JLS-B-Z13S-510-V0
Battery Type 13-cell ternary lithium-ion/polymer lithium battery pack (48V system)
Interface Same-port charge/discharge design
Continuous Current Up to 25A (50A maximum)
Key Features

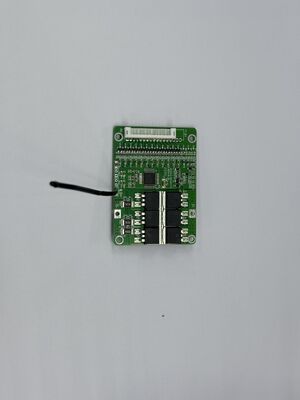

  • High-precision SH3676014BP protection IC for accurate voltage/temperature monitoring
  • 8 JJW low on-resistance MOSFETs (JMSH1005PE) for strong current handling
  • Simplified wiring with shared charge/discharge interface
  • Comprehensive protection: OVP, UVP, OCP, SCP, and OTP
  • Supports external NTC for temperature monitoring
  • Ideal for power tools, energy storage systems, and light electric vehicles
Protection Functions
  • Overcharge Protection (OVP)
  • Over-Discharge Protection (UVP)
  • Overcurrent Protection (OCP)
  • Short Circuit Protection (SCP)
  • Over-Temperature Protection (OTP)
